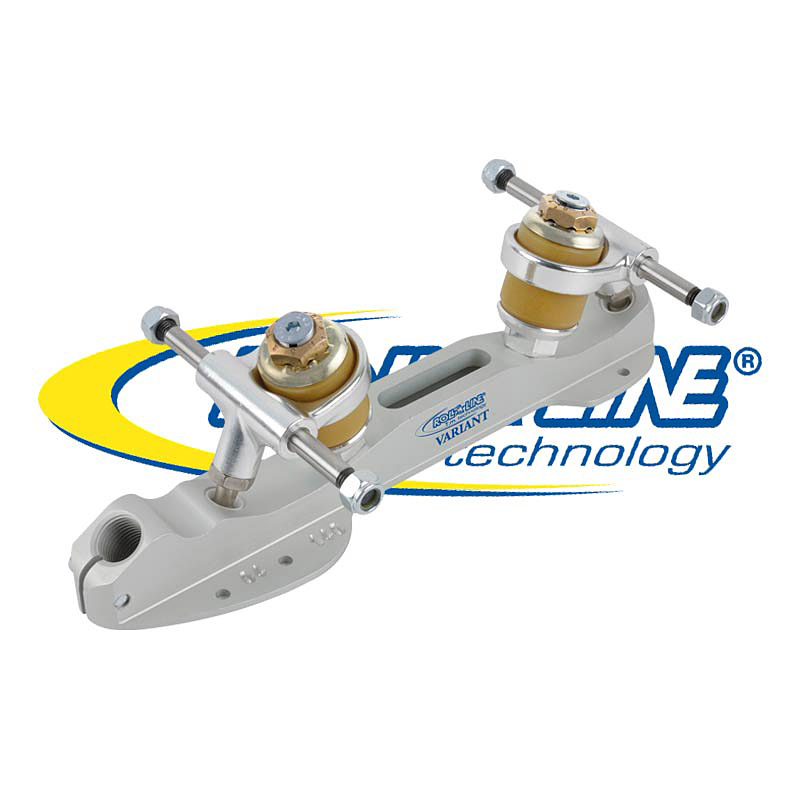

Roll-Line VARIANT C Intermediate FreeStyle/Dance Skate Plates
Roll-Line VARIANT C (Metal Trucks + Click Action) Intermediate FreeStyle/Dance Skate Plates
Suitable for: Beginner competitive skaters in the learning stage
The Roll-Line Variant C frame offers the same quality features of the Variant M frames with the addition of a Click Action adjustment system.
Technical Specifications:
• A CNC machined frame forged from a solid bar of Aircraft Aluminum Alloy
• 7mm axels in the strongest steel available, with Optional 8mm axles available
• Adjustable pivot pins
• Roll-Line Click Action Adjustment System provides accurate and consistent Action adjustments using the 04 series, 13mm base King Pins with Adjustment Click Nuts and Locking Screws
• Comes with the Roll-Line standard set of wrenches
Toe Stop Options:
• Seven toe stop options available – Standard Grey metric thread toe stops are included, or Choose MIni Dance Plugs OR upgrade to other Professional Roll-Line stoppers, AND Derby stoppers, available in the Pull-Down menu
Cushion Options:
• Choose Standard (Factory Installed Rubber), OR upgrade to your Choice of rubber or urethane suspensions, in a specific hardness.
Choosing a Size:
• Plates are sized according to wheelbase measurement (from centre of front axle to centre of rear axle) from 90mm to 190mm. If you aren't sure, please ask for advice on selecting the right size for your needs!
Manufacturer's Recommended Plate Sizes:
| Plate Size | EURO Size | US Mens Size | US Ladies Size | EDEA Boot Size | Overall Frame Length (Centimeters) |
WheelBase (Centre Axle to Axle Centimeters) |
WheelBase (Centre Axle to Axle Inches) |
| 90 | 27-28 | J9-11 | J11-12 | 185-190 | 18.0 | 9.0 | 3-9/16" |
| 100 | 29-31.5 | J12-1 | J13-1.5 | 195-210 | 19.5 | 10.0 | 3-15/16" |
| 110 | 32-33 | J1.5-2 | J2-2.5 | 215-220 | 20.0 | 11.0 | 4-5/16" |
| 120 | 34-34.5 | J2.5-3 | J3-3.5 | 225-230 | 20.9 | 12.0 | 4-11/16" |
| 130 | 35-36 | J3.5-4.5 | 4-5 | 235-240 | 21.9 | 13.0 | 5-1/8" |
| 140 | 37-37.5 | 5-5.5 | 5.5-6 | 245-250 | 22.8 | 14.0 | 5-1/2" |
| 150 | 38-39 | 6-7 | 6.5-7.5 | 255-260 | 24.0 | 15.0 | 5-7/8" |
| 160 | 40-40.5 | 7.5-8 | 8-8.5 | 265-270 | 24.9 | 16.0 | 6-5/16" |
| 170 | 41-42.5 | 8.5-9.5 | 9-10 | 275-285 | 25.9 | 17.0 | 6-11/16" |
| 180 | 43-44 | 10-11 | 10.5-11.5 | 290-295 | 26.9 | 18.0 | 7-1/8" |
| 190 | 45-47 | 11.5-13 | 12-13.5 | 300-310 | 27.9 | 19.0 | 7-1/2" |
